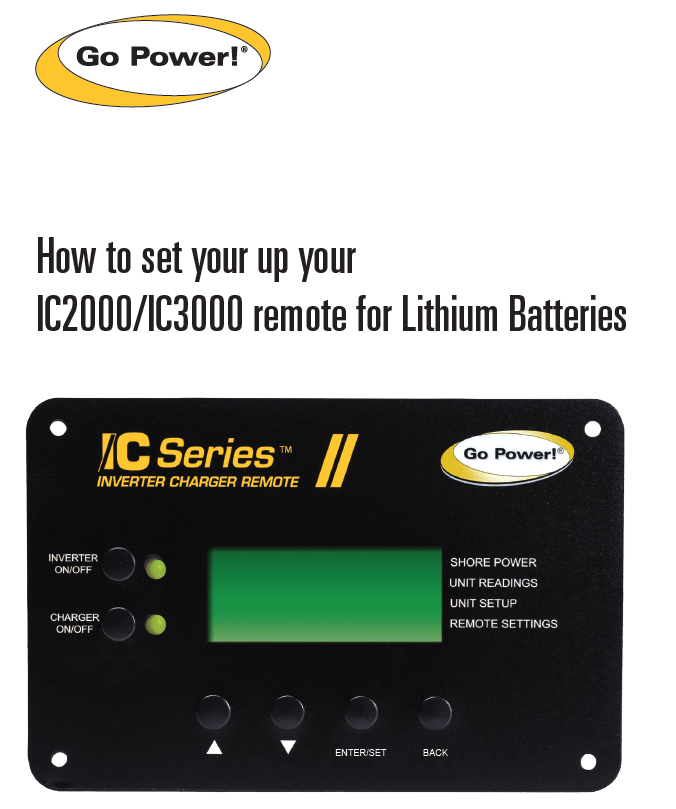

IC Series Inverter Charger: Lithium Battery Setup

To set your IC Series Inverter Charger to charge Go Power Lithium batteries, complete the following steps:

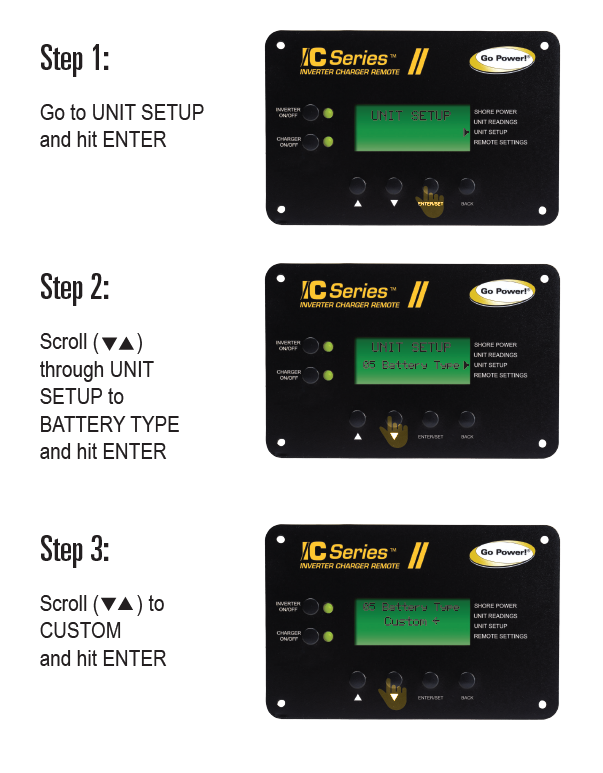

• Go to Unit Setup and hit enter;

• Scroll through unit setting to battery type and hit enter;

• Scroll to Custom and hit enter;

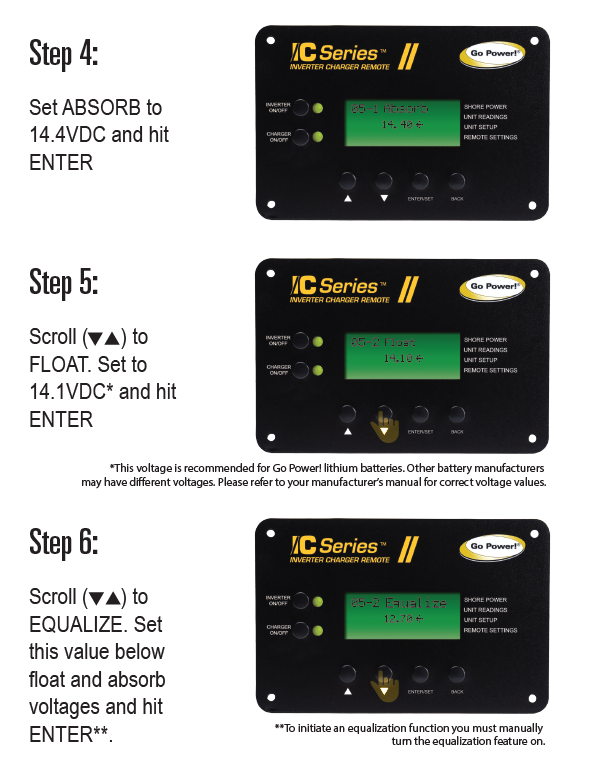

• Set absorption to 14.4 VDC and hit enter;

• Set Float to 14.1 VDC and hit enter;

• Set equalize to 12.7 VDC and hit enter;

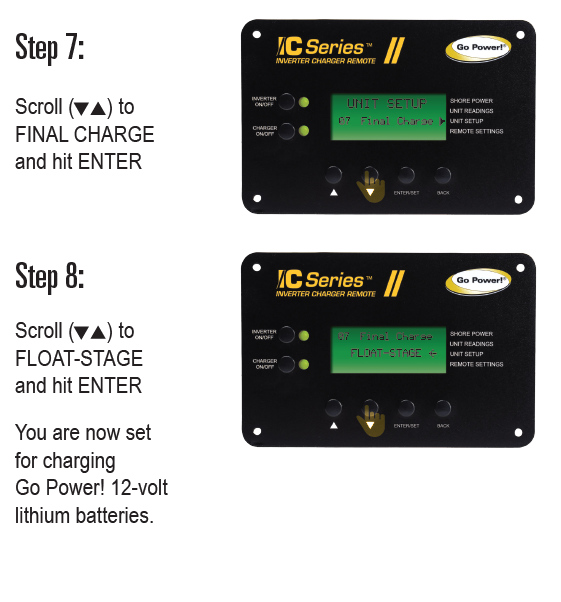

• Scroll to Final Charge and hit enter;

• Scroll to set to Float and hit enter;

You are now set for charging Go Power 12 volt lithium batteries!
