The TS-30 switches between two AC sources and ONLY two sources.  If three sources are on the RV then two switches would be required.

Here are some examples of different ways to wire a TS-30 transfer switch:

For the images the lines are indicated as:

• Green lines are ground

• Black lines are hot lines

• Double lined is natural

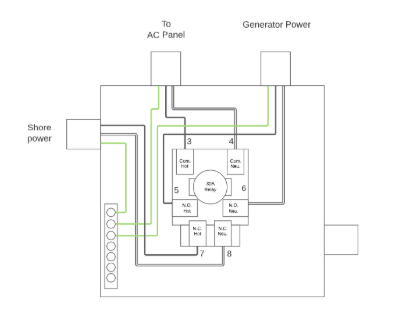

1. TS-#30 Switching between Shore power and generator.

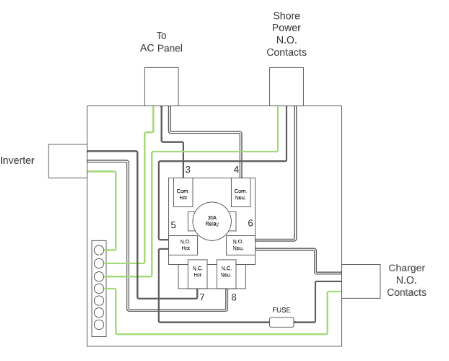

2. TS-30 Between Inverter and Shore Power

3. TS-30 with inverter, shore and generator requiring two Transfer switches
